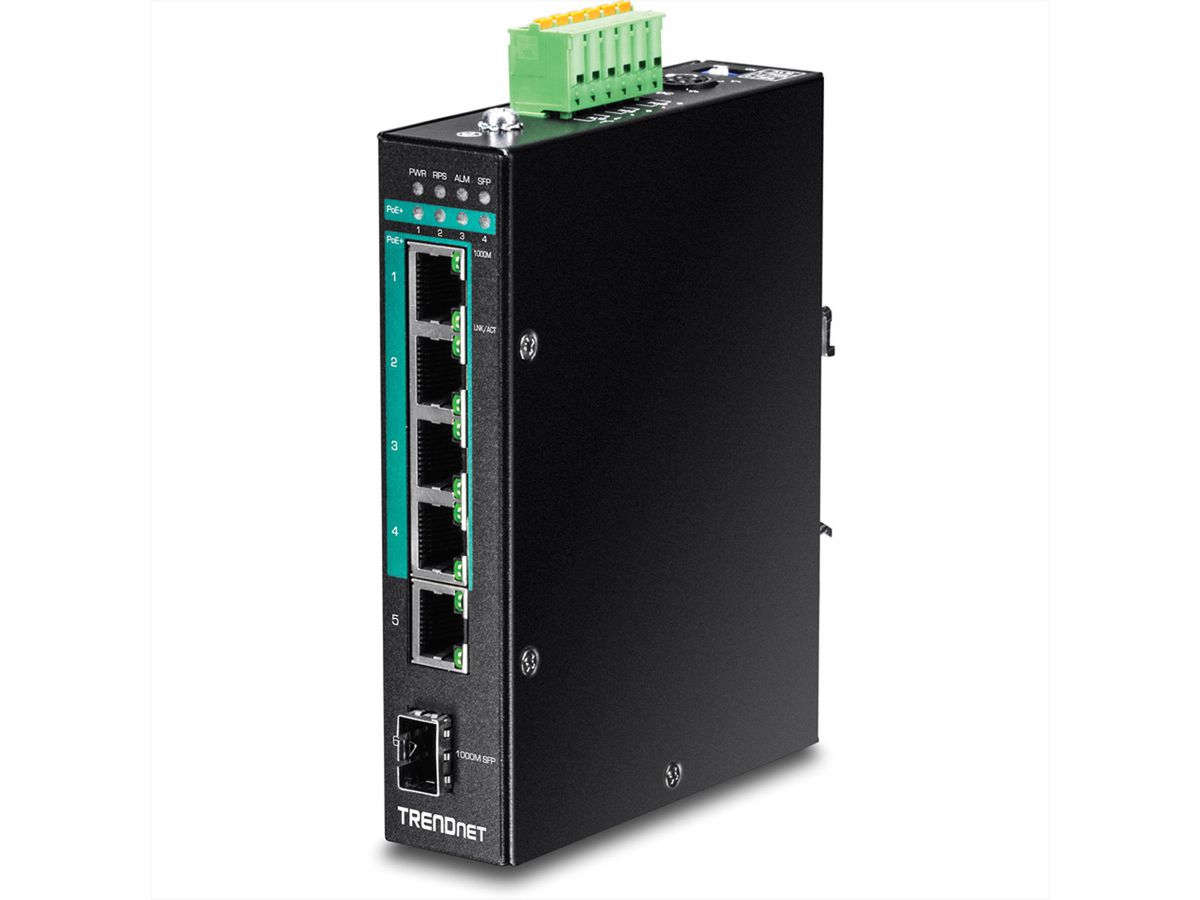

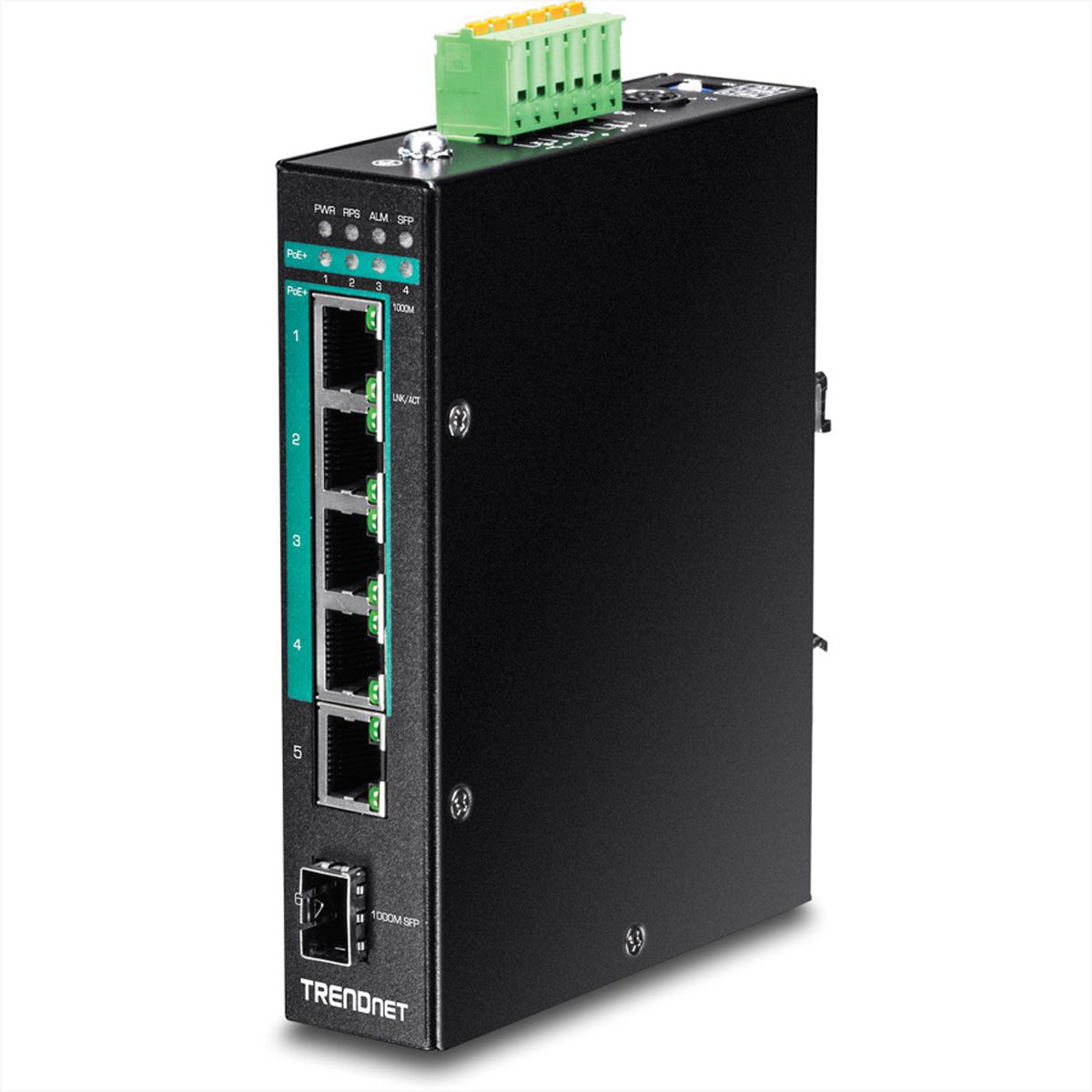

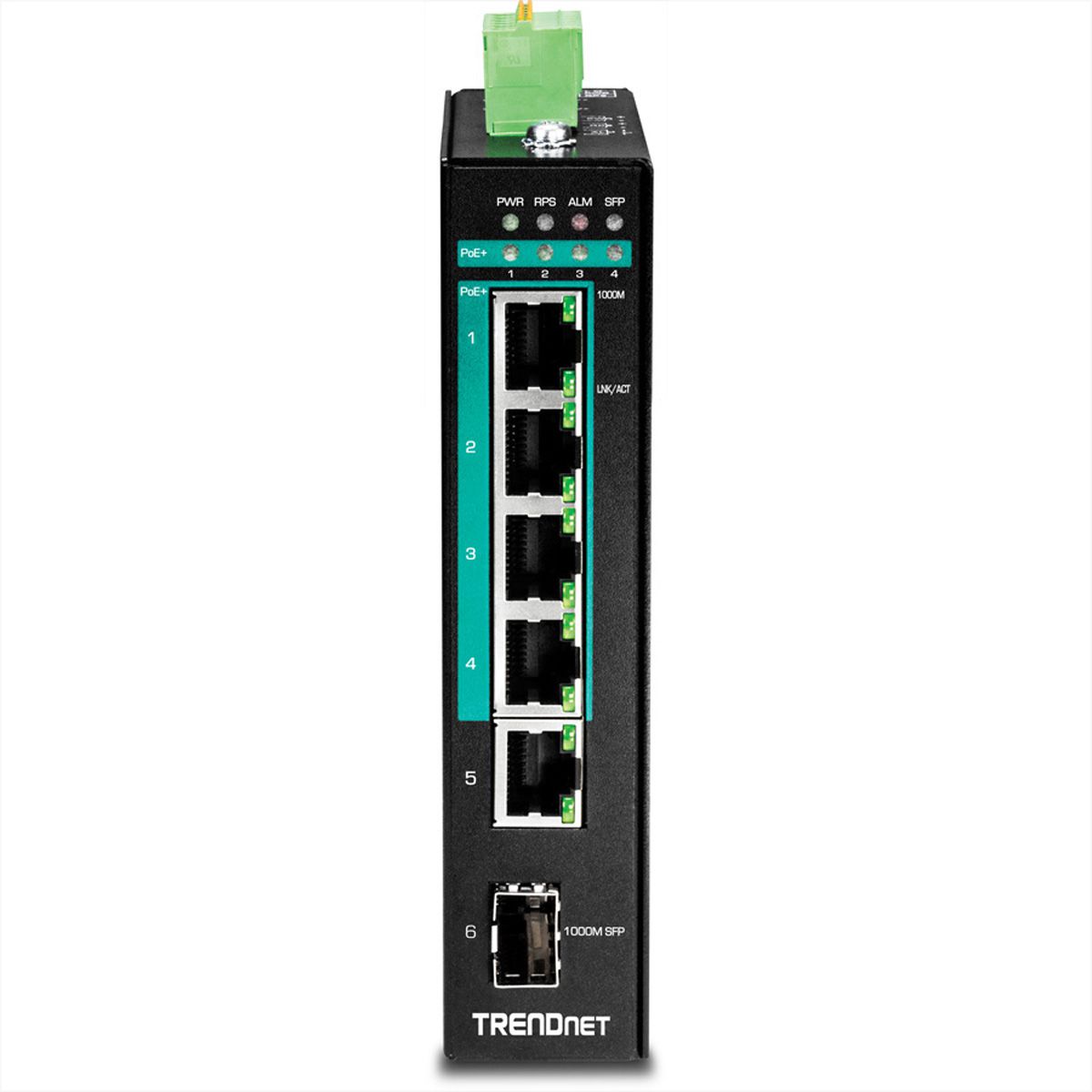

TRENDnet TI-PG541i 6-Port Switch PoE+ Industrial Gigabit Layer 2 DIN-Rail

6-Port Switch PoE+ Industrial Gigabit Layer 2 DIN-Rail

The TRENDnet 6-port hardened industrial Gigabit PoE+ Layer 2+ managed DIN-rail switch, model TI-PG541i, features four Gigabit PoE+ ports, one Gigabit SFP slot, and a total PoE power budget of 120 watts. The switch features an IP30-rated metal housing and withstands strong vibrations, shocks, ESD/EMI, and overload conditions. It operates in a wide temperature range from -40 to 75 °C (-40 to 167 °F) for use in extreme environments. L2 management features include PoE port control, VLAN, multicast, and QoS for flexible network integration.

• Hardened IP30-rated metal housing with integrated DIN-rail mount
• Wide operating temperature range from -40 to 75 °C (-40 to 167 °F)
• 4 Gigabit PoE+ (802.3at) ports, 1 Gigabit port, and 1 Gigabit SFP slot
• 120-watt total PoE power budget
• Dual redundant power inputs and alarm relay
• CLI (Telnet), Web (HTTP), and SNMP v1/v2c management
• 802.1Q / MAC-based VLAN and IGMP Snooping support
• 802.1p / DSCP / queue scheduling (SP/WFQ/WRR) QoS support
• Power supply sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048)

Industrial Hardened Design:
Equipped with a rugged IP30-rated housing and designed to withstand strong vibrations and shocks; protected against ESD/EMI/overload; operates in a wide temperature range (-40 to 70 °C (-40 to 158 °F)) for extreme environments.

Flexible Integration:
Managed features include per-port PoE control / priority / scheduling / power delay, 802.1Q/MAC-based VLAN, IGMP Snooping, per-port bandwidth control, 802.1p / DSCP / queue scheduling, and SNMP Trap/RMON/SMTP notification/Syslog/Port Mirror for monitoring.

Fault Tolerance:

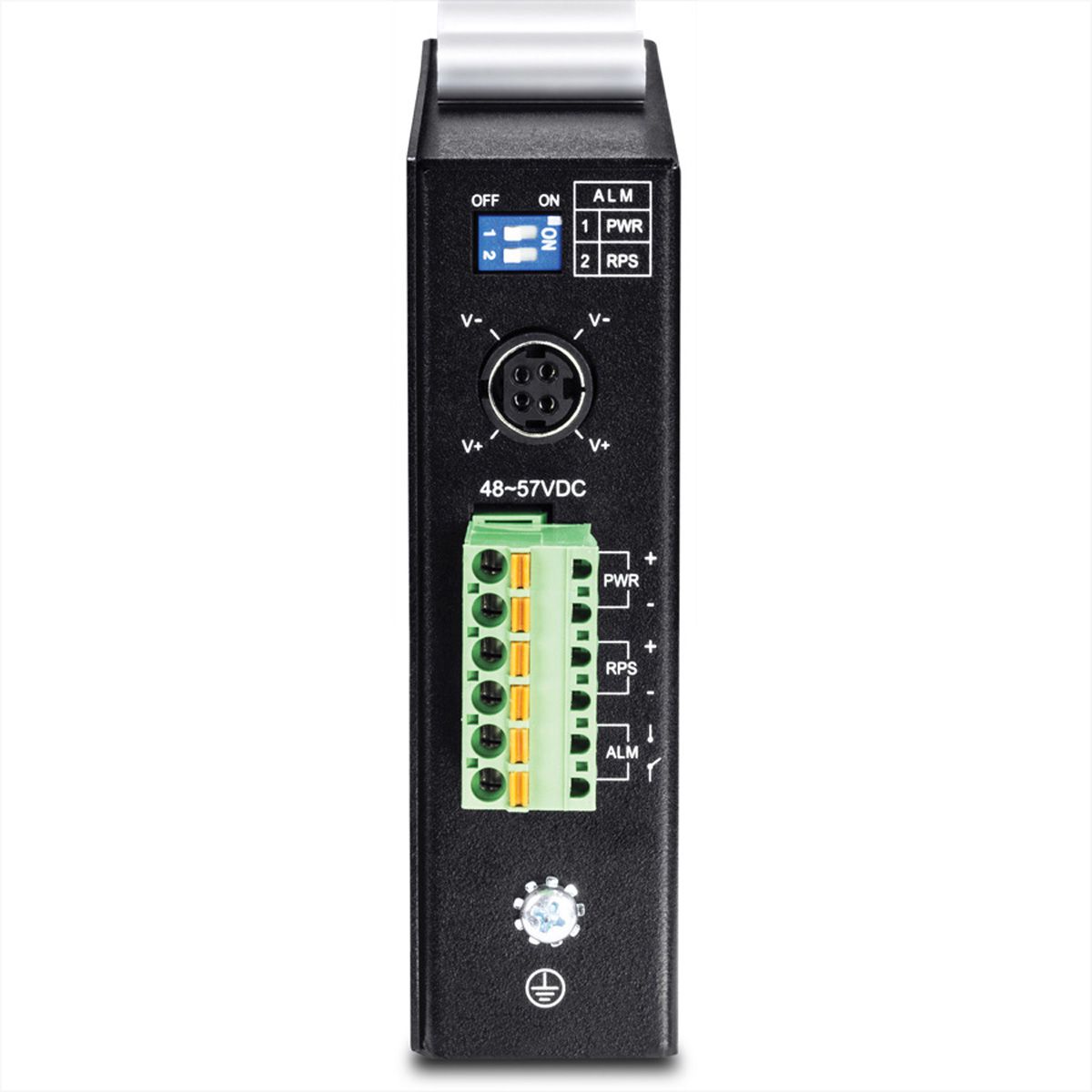

Provides dual redundant power inputs (primary and RPS) from external power sources and an alarm relay for notification in case of power failure.
