TRENDnet TI-PG62 6-Port Gigabit Switch PoE+ DIN-Rail Industrial

Item no. 21221279 Brand / Manufacturer TRENDNET Manuf. item no. TI-PG62 EAN 710931160604 Item weight 0.728 kg
TRENDNET

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

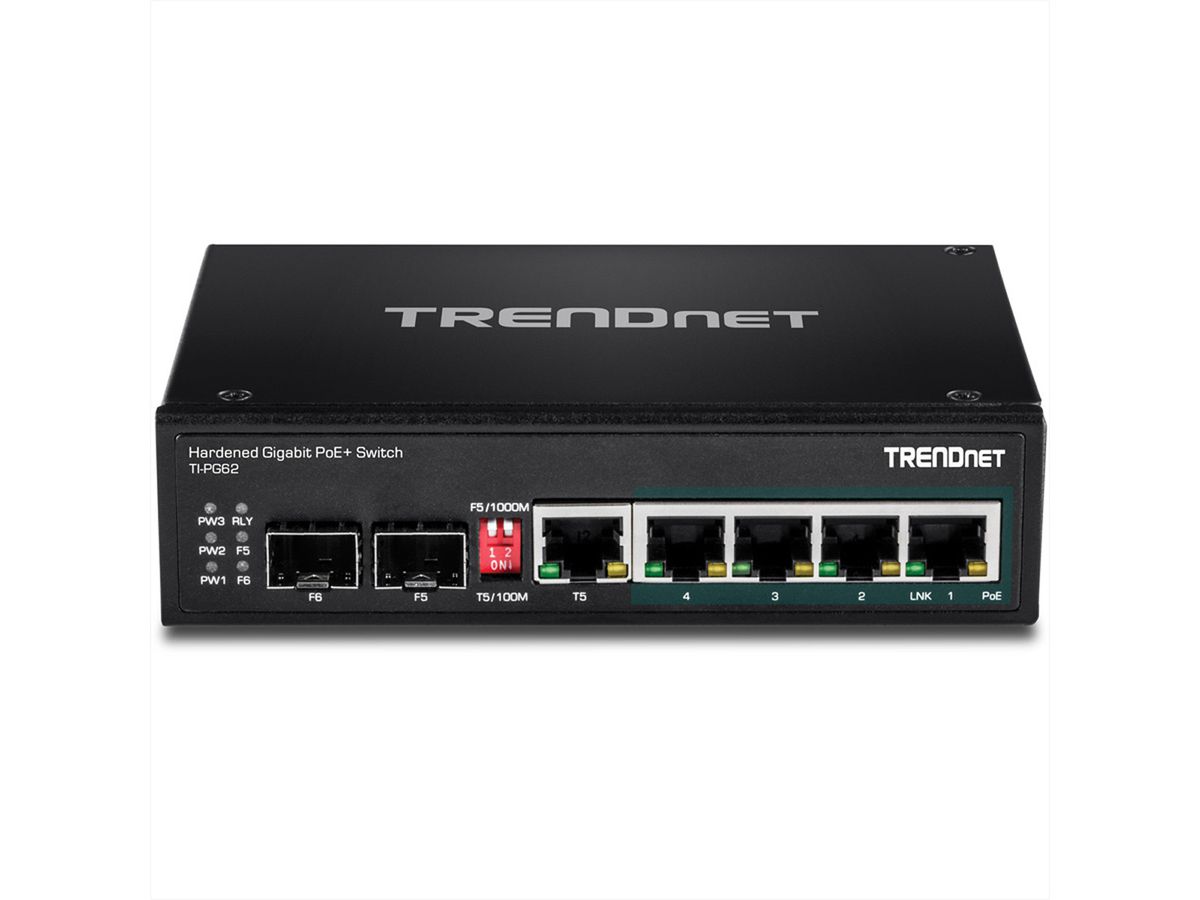

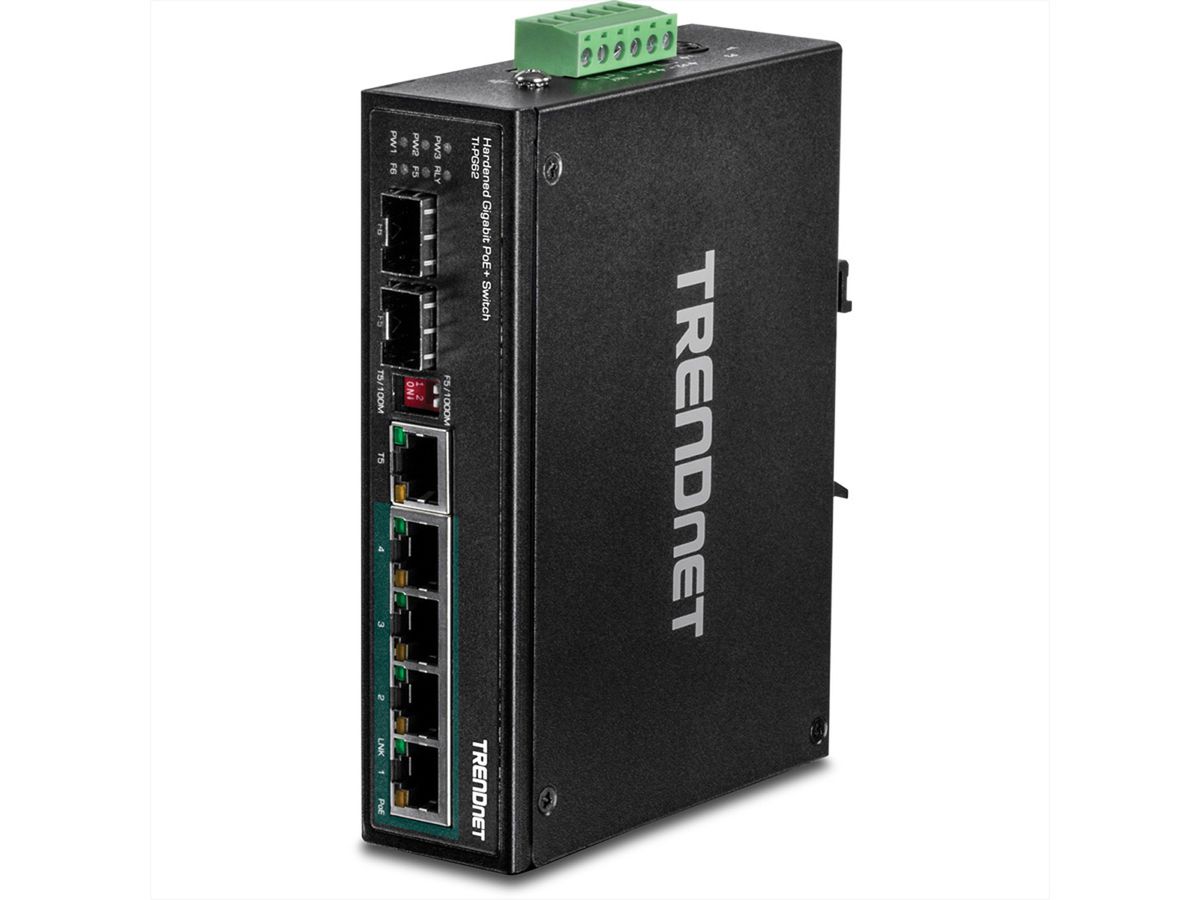

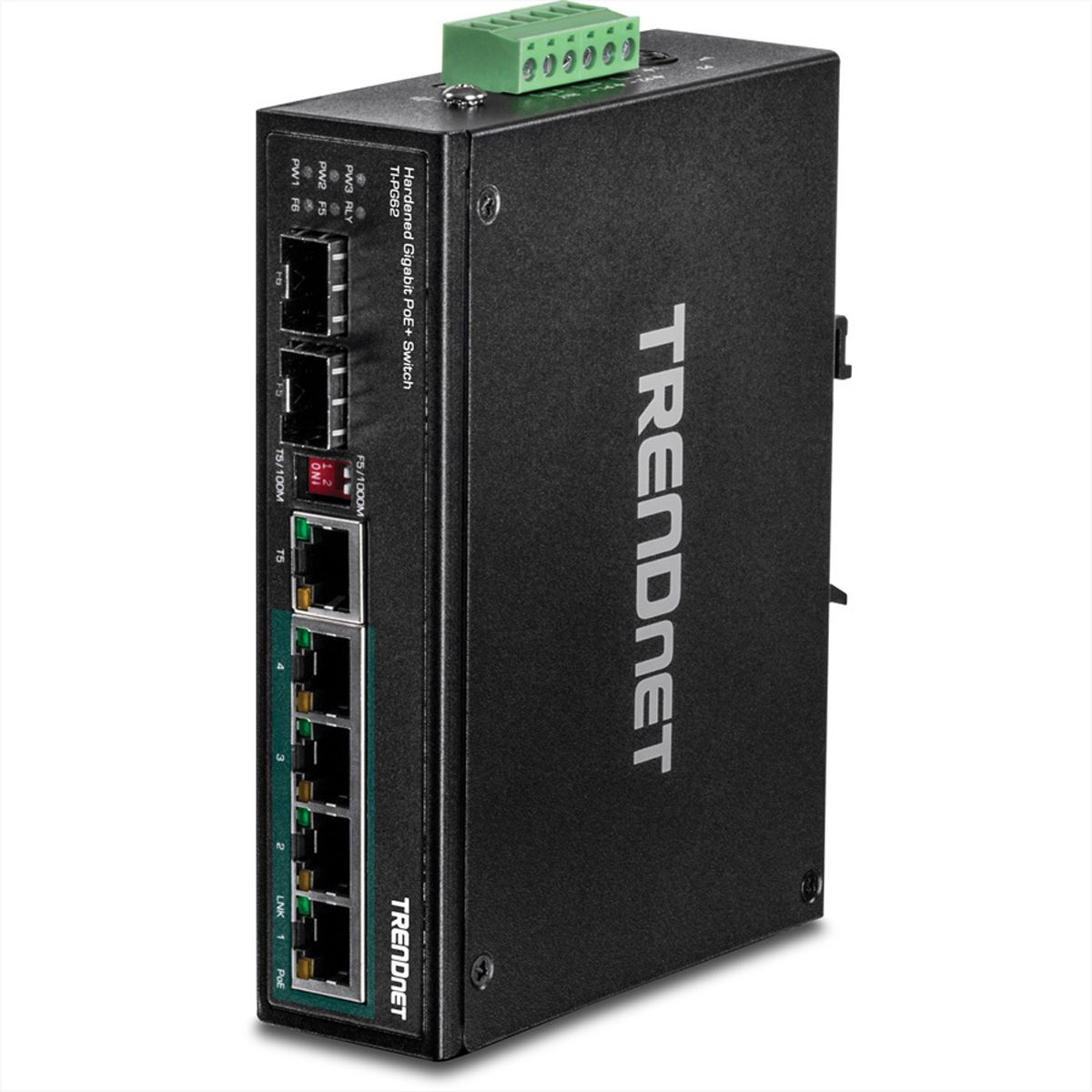

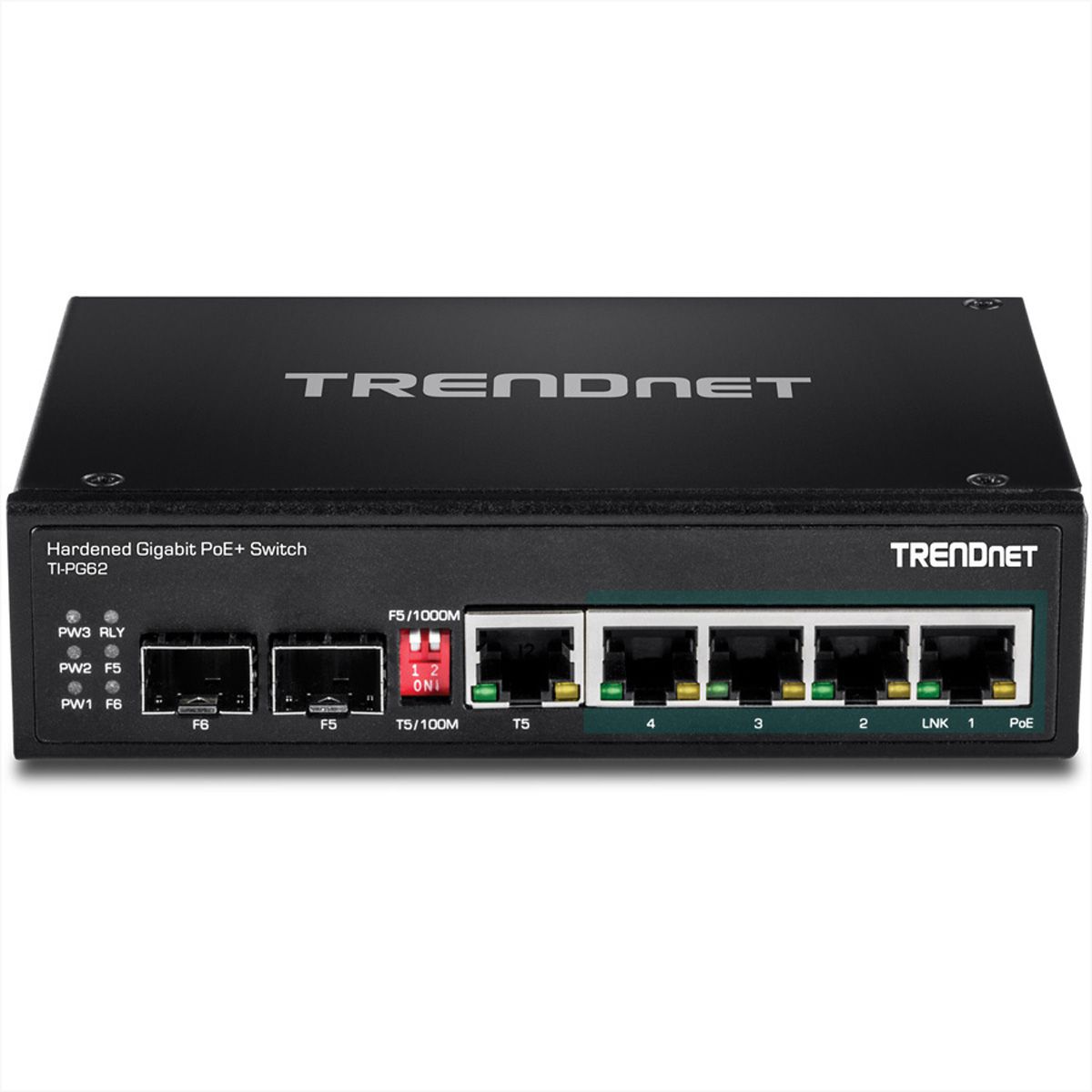

TRENDnet TI-PG62 6-Port Gigabit Switch PoE+ DIN-Rail Industrial

The TRENDnet TI-PG62 is a reliable unmanaged DIN-Rail PoE+ switch with IP30 protection and a rugged housing designed for harsh industrial environments. It features 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, 12 Gbps switching capacity, dual redundant power inputs, and an alarm relay for power failure notification.

PoE Power:
With a total PoE+ power budget of 120 watts, it can supply power to up to four PoE+ devices.

Fault Tolerance:

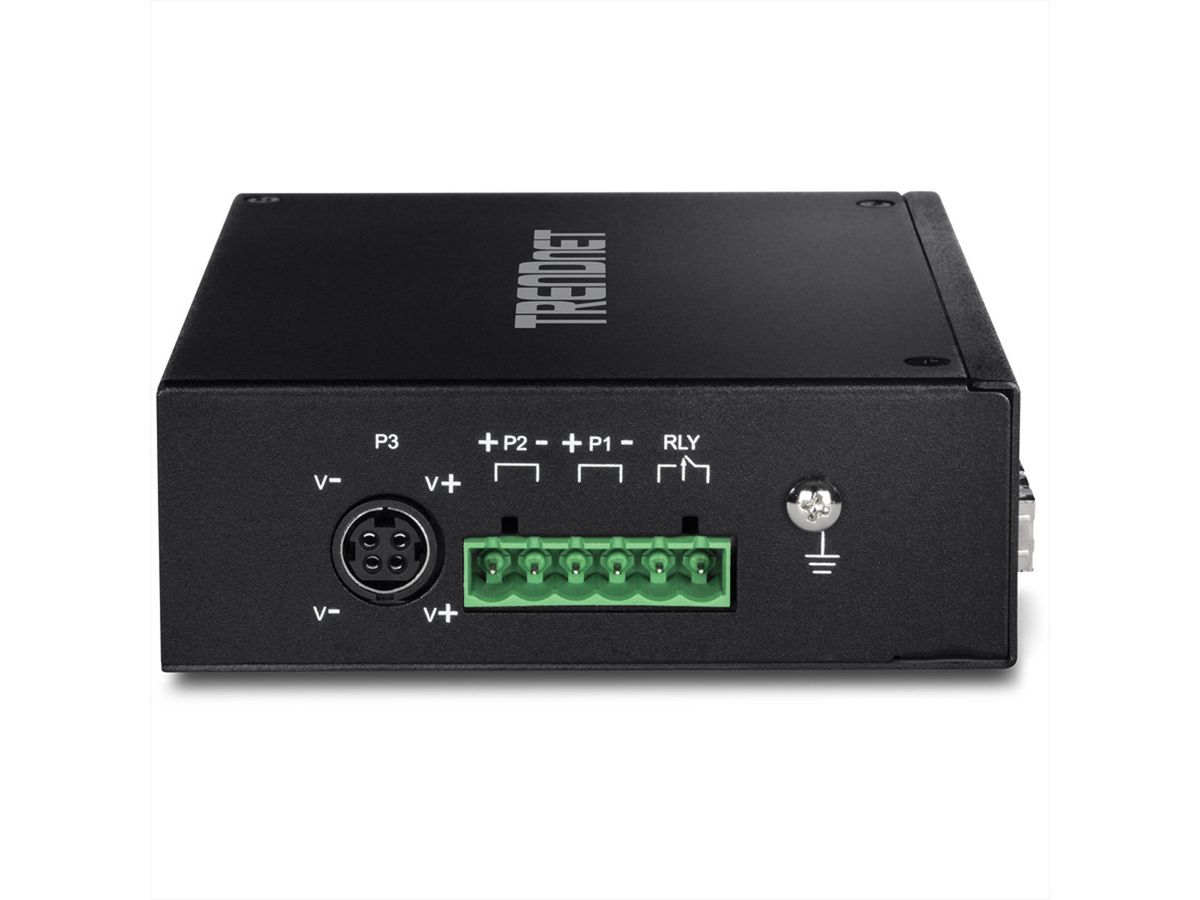

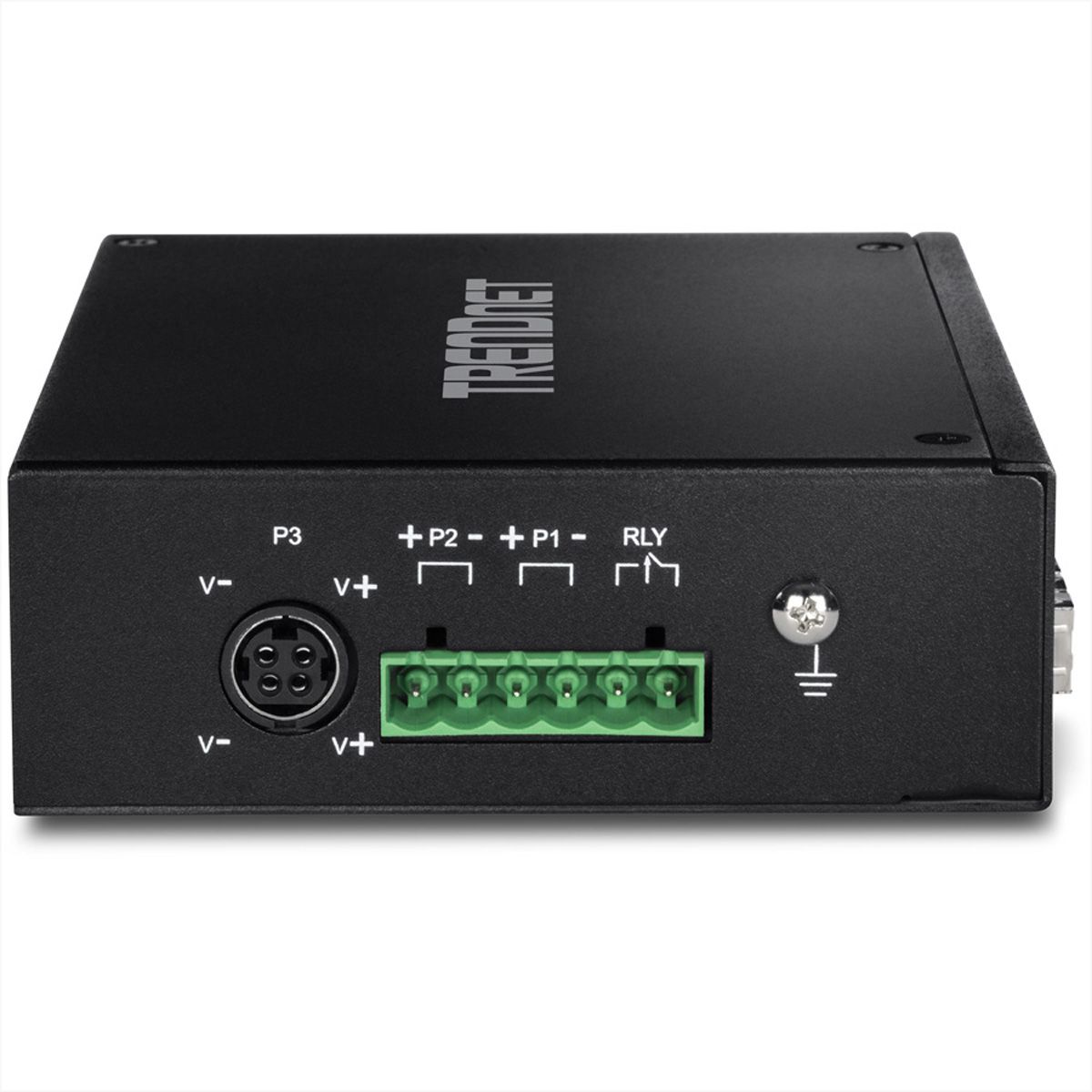

Provides dual redundant power inputs (primary and RPS) from external power sources and an alarm relay to notify users in the event of a power failure.

Equipped with a rugged IP30-rated housing designed to withstand strong vibrations and shocks; protected against ESD / EMI / overload; supports operation in an extended temperature range (-40 – 75 °C / -40 – 167 °F) for extreme environments.

  • 4 Gigabit PoE+ ports
  • 2 dedicated SFP slots
  • 60 – 120 W total power budget
  • 12 Gbps switching capacity
  • Rugged IP30-rated metal switch
  • DIN-Rail and wall-mount brackets included
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Dual redundant 12-56VDC power inputs with overload protection
  • Power failure alarm
  • Power supply sold separately (Model: TI-S12048)

Specifications

Manufacturer
TRENDNET
Product group
Industrial Networking
Product type
Network Switch
Colour
black
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
6
Gigabit Ethernet Ports RJ-45
4
Free slots for SFPs
2
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Quantity of PoE ports
4
Max. PoE output power (total)
120 W
Protection class (IP Code)
IP30
Operating temperature min.
-40 °C
Operating temperature max.
75 °C
Height
45 mm
Width
143 mm
Depth
105 mm
Weight
700 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
180 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
0.728 kg

Downloads

Manufacturer data sheet - Deutsch (4.5 MB) Manufacturer data sheet - English (4.4 MB) Manufacturer data sheet - Français (4.5 MB)
