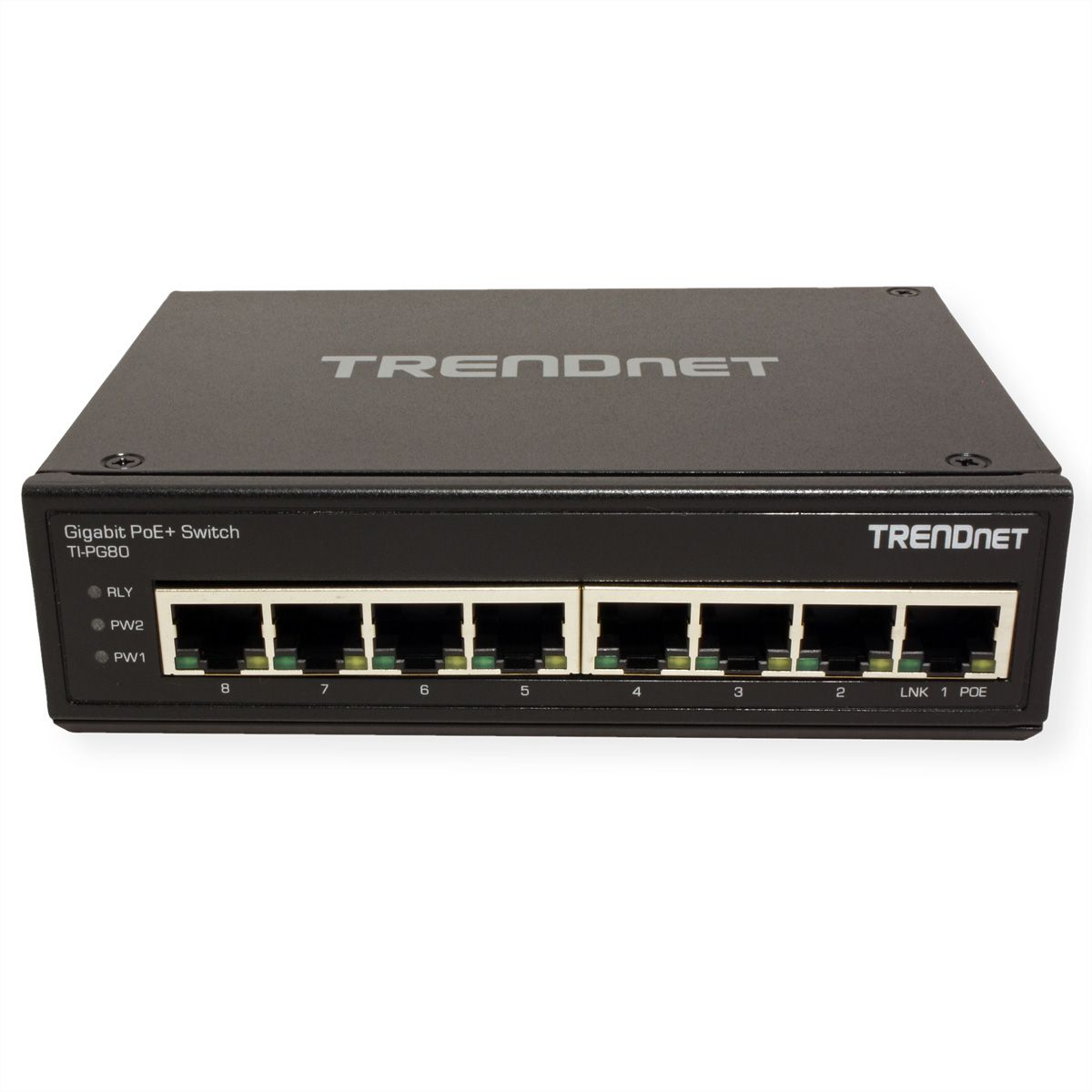

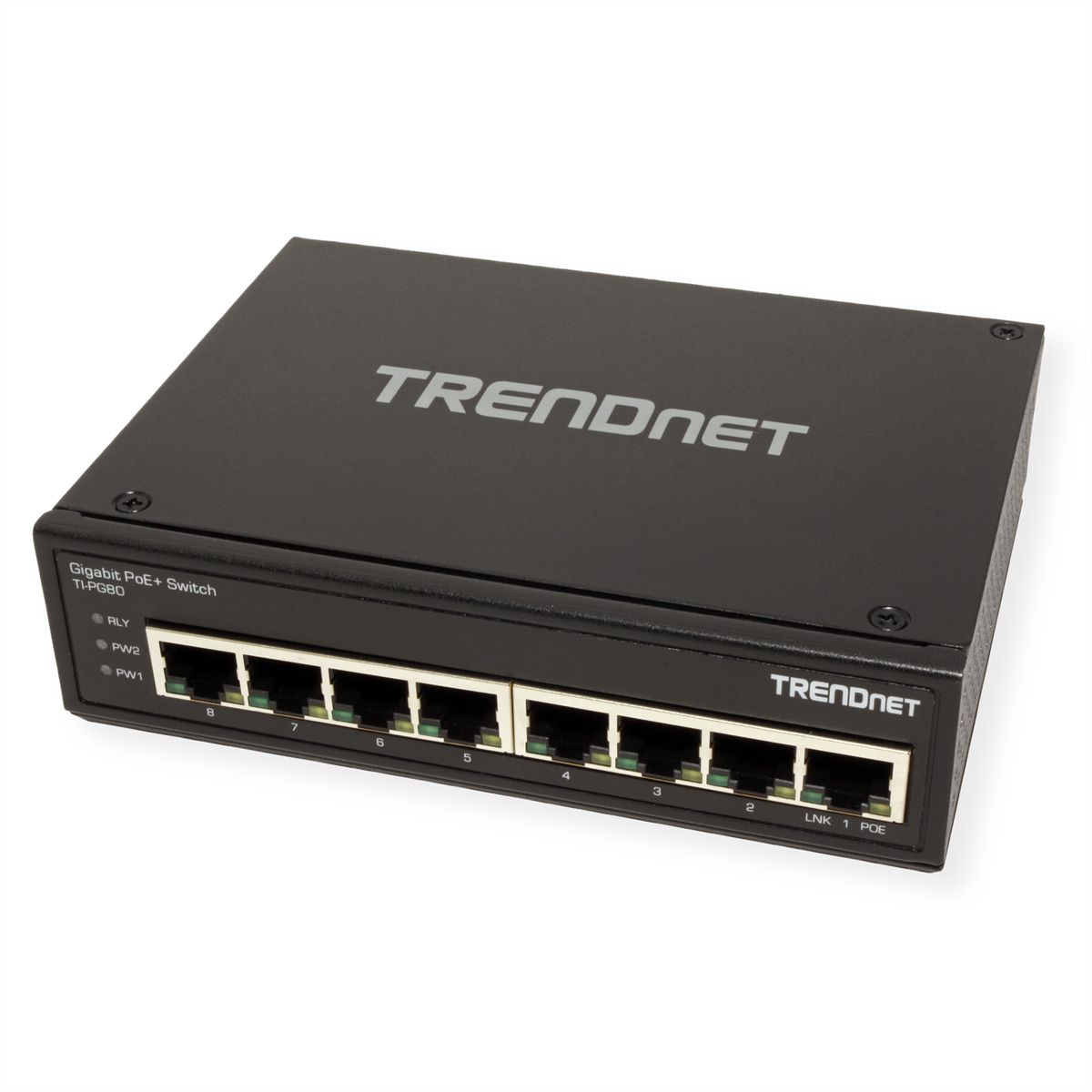

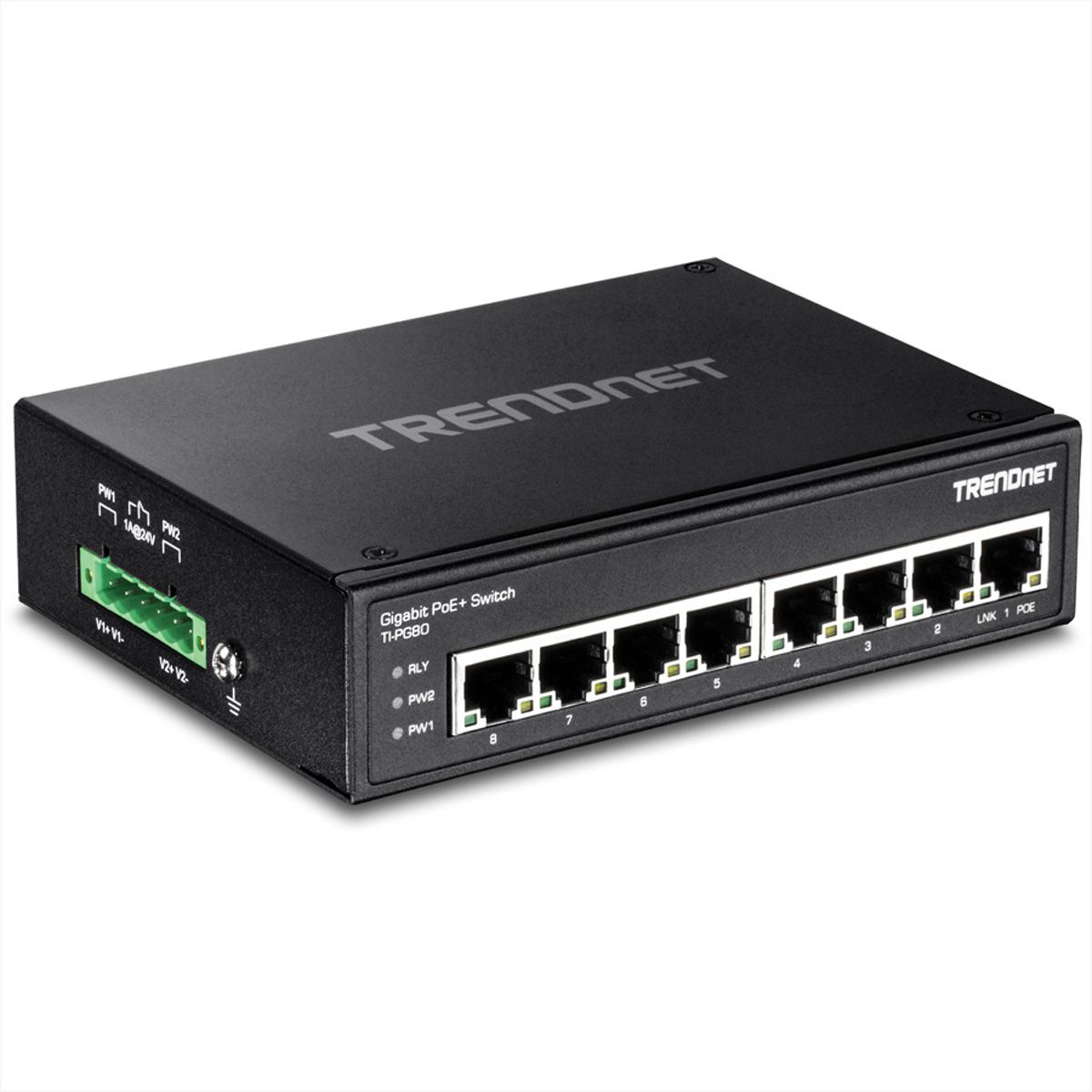

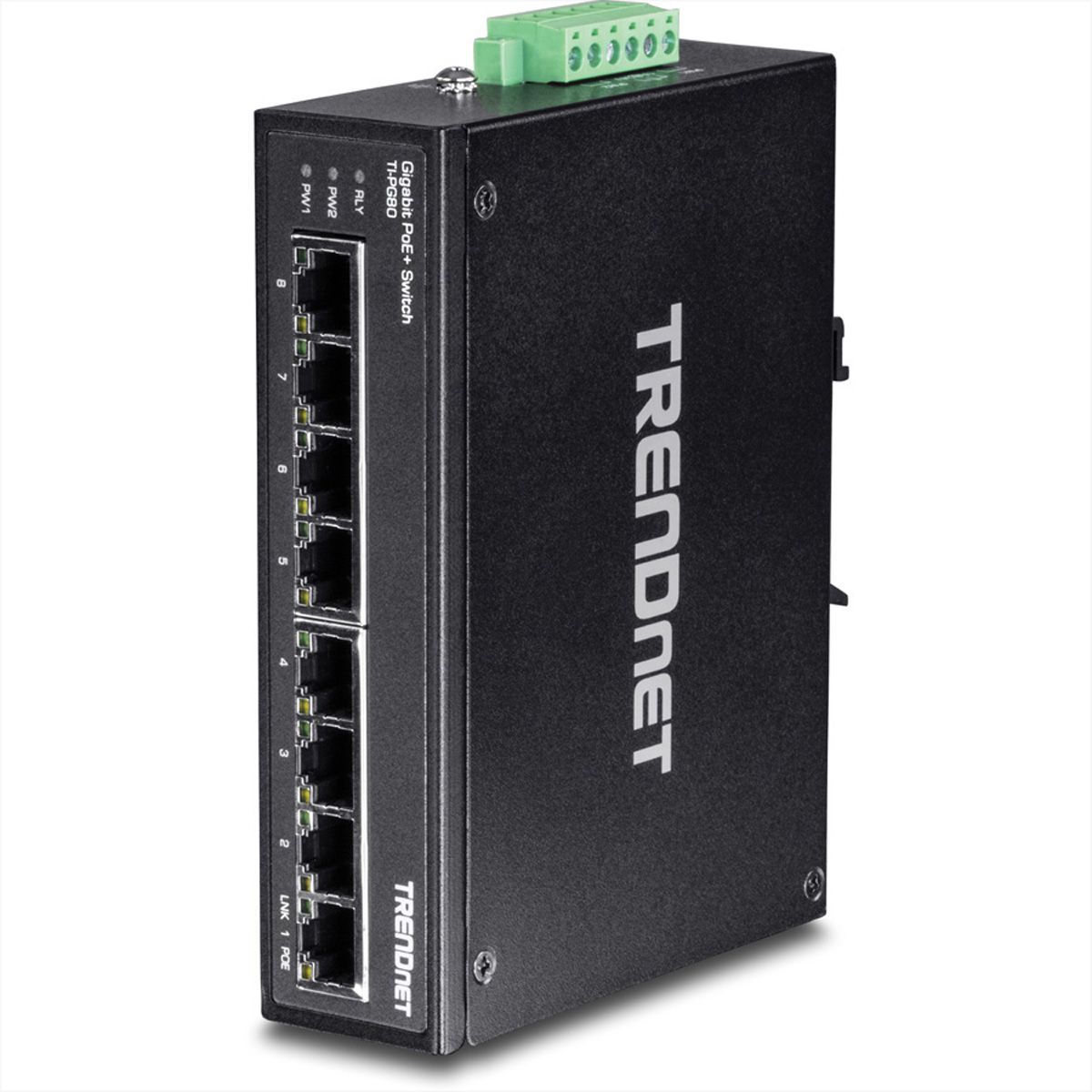

TRENDnet TI-PG80 8-Port Industrial Gigabit PoE+ DIN-Rail Switch

Item no. 21221190 Brand / Manufacturer TRENDNET Manuf. item no. TI-PG80 EAN 710931160352 Item weight 0.698 kg
TRENDNET

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

8-Port Industrial Gigabit PoE+ DIN-Rail Switch

The TRENDnet TI-PG80 is a reliable unmanaged IP30 PoE+ DIN-rail switch with hardened components, designed for extreme industrial environments. It features 8 Gigabit PoE+ ports (802.3at/802.3af) and a total PoE power budget of up to 200 watts. Dual redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm enable reliable operation without interruption.

  • 8 Gigabit PoE+ Ethernet ports
  • Total PoE+ power budget up to 200 watts
  • 16 Gbps switching capacity
  • Hardened IP30-rated metal switch

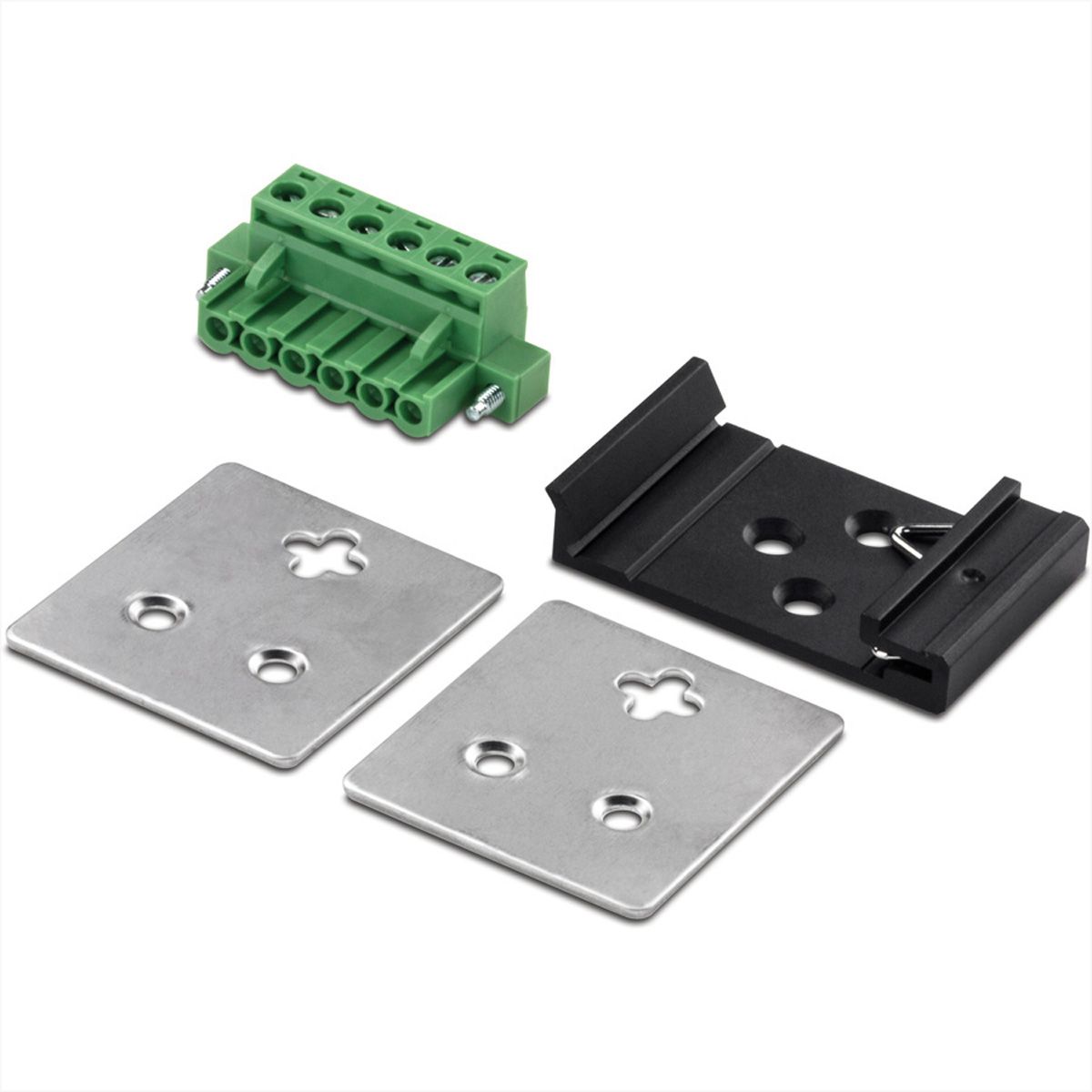

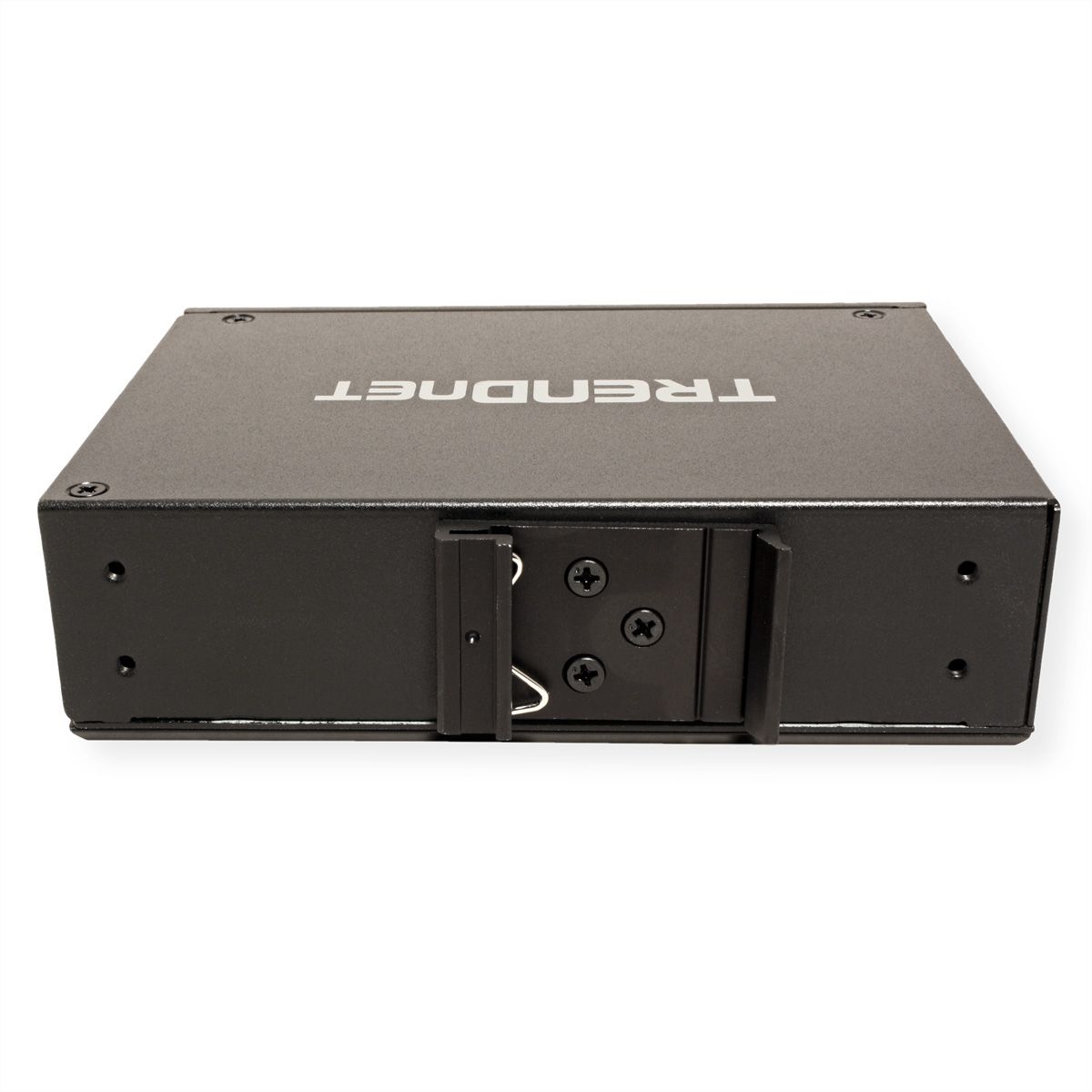

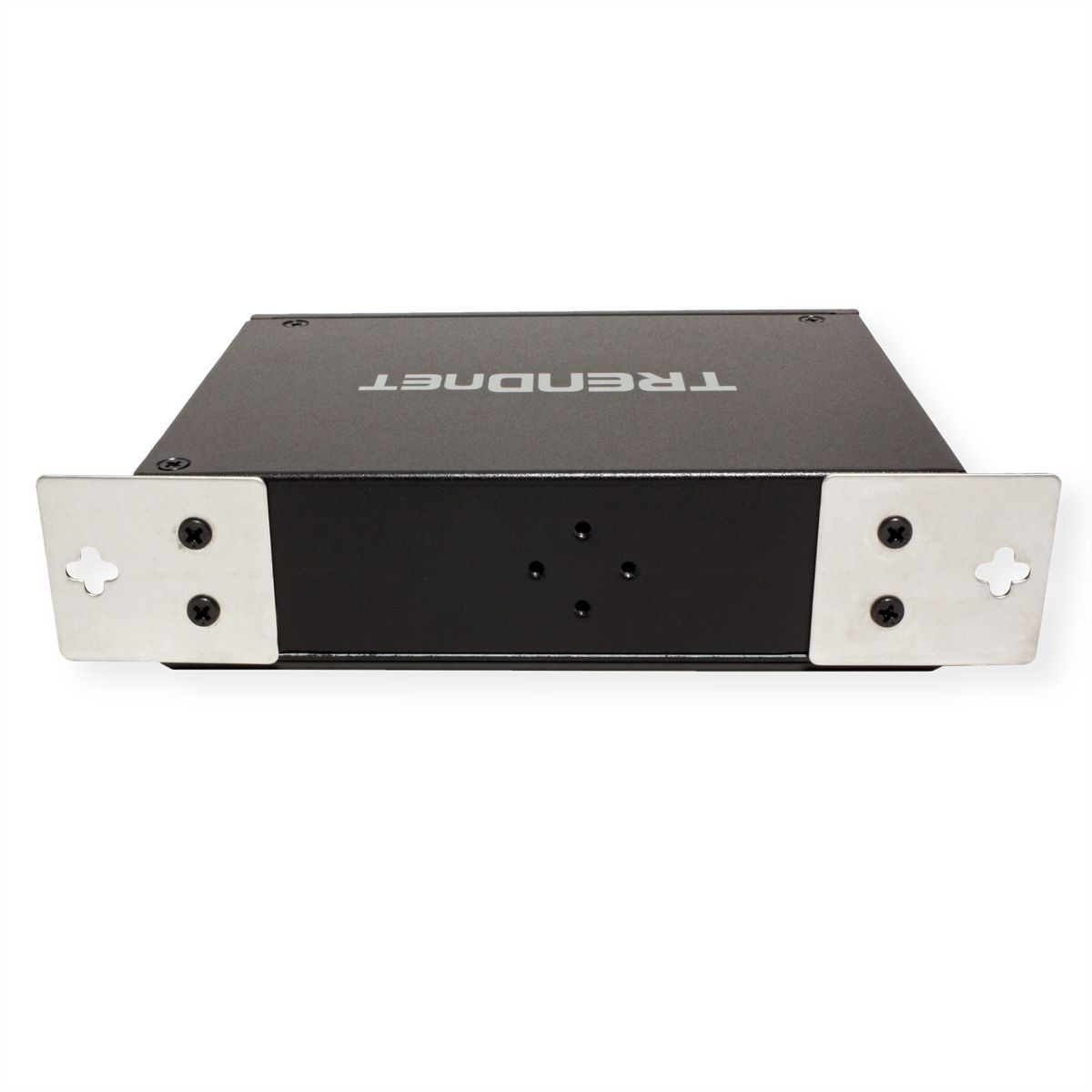

  • Includes DIN-rail and wall mount kits
  • Extreme operating temperature range from -40 to 75 °C

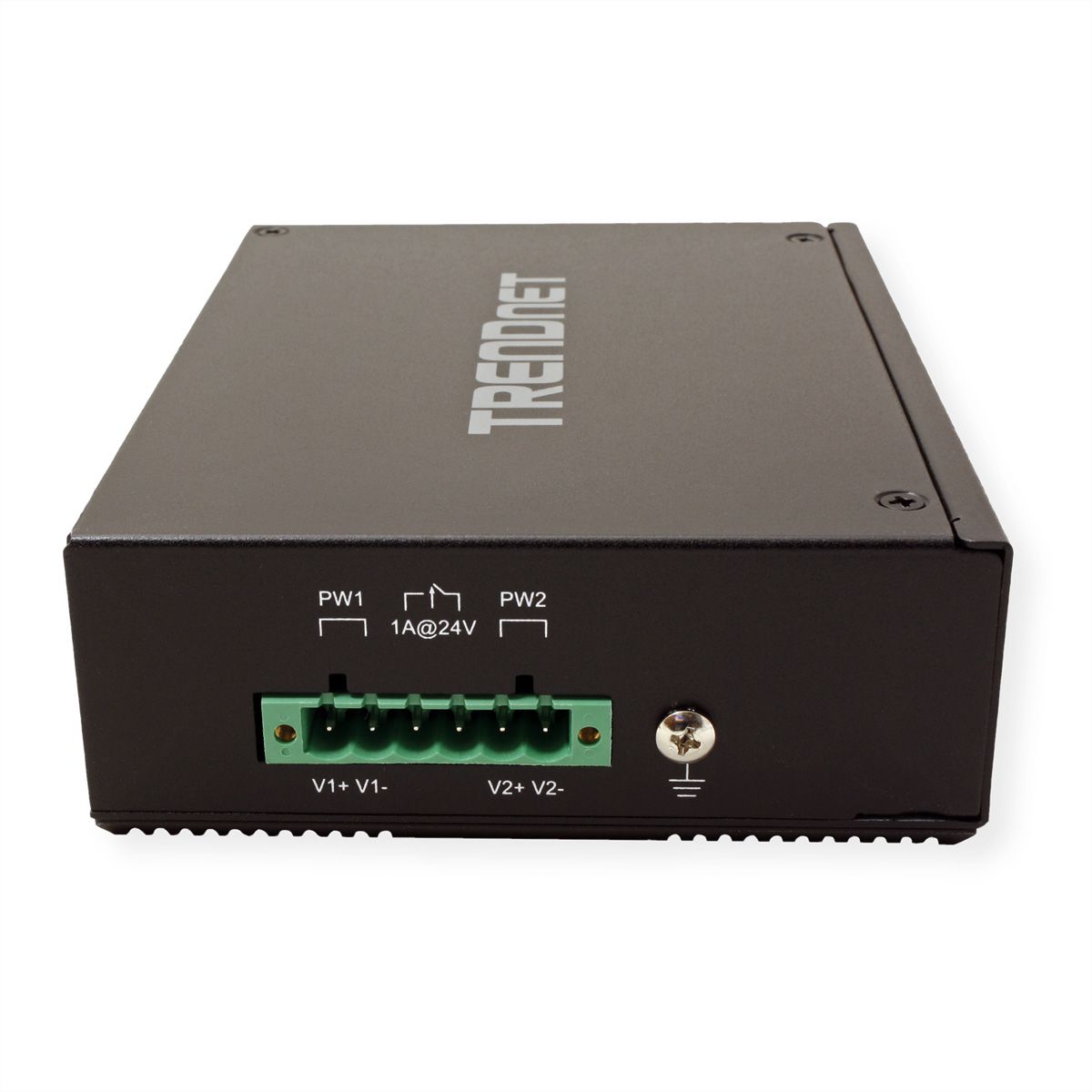

  • Dual redundant power inputs with overload current protection
  • Power failure alarm notification
  • Power supply sold separately (model TI-S24048)

TRENDnet’s TI-PG80 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Dual redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications. - 8 x Gigabit PoE+ Ethernet ports - Up to a 200 Watt full PoE+ power budget - 16 Gbps switching capacity - Hardened IP30 rated metal switch - Includes DIN-rail and wall mounts - Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range - Dual redundant power inputs with overload current protection - Alarm output triggered by power failure - Powers supply sold separately

Specifications

Manufacturer
TRENDNET
Product group
Industrial Networking
Product type
Network Switch
Colour
black
Scope of delivery
TI-PG80, Quick Installation Guide, Removable terminal block
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
8
Gigabit Ethernet Ports RJ-45
8
Other connectors
6-pin removable terminal block
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Quantity of PoE ports
8
Max. PoE output power (total)
200 W
Mounting form
DIN Rail
Protection class (IP Code)
IP30
Dimensions (HxWxD)
143 x 104 x 36 mm
Power supply
External power supply unit
Operating temperature min.
-40 °C
Operating temperature max.
75 °C
Height
143 mm
Width
104 mm
Depth
36 mm
Weight
0.55 kg
Height of packaging (single piece)
80 mm
Width of packaging (single piece)
180 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
0.698 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
Gigabit Ethernet (copper) ports quantity
8
Weight & dimensions
Width
104 mm
Depth
36 mm
Height
143 mm
Weight
554 g
Power
Power consumption (max)
5.76 W
Redundant power supply (RPS) support
Y
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Networking
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
10G support
N
Full duplex
Y
Flow control support
Y
Data transmission
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Throughput
11.9 Mpps
Store-and-forward
Y
Jumbo frames support
Y
Management features
Switch type
Unmanaged
Switch layer
L2
Packaging content
Quick start guide
Y
Wall mounting kit
Y
Design
Rack mounting
N
Product colour
Black
LED indicators
Y
Housing material
Metal
International Protection (IP) code
IP30
Wall mountable
Y
Certification
FCC, CE
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
200 W
Performance
Packet buffer memory
1 MB
Mean time between failures (MTBF)
510304 h
