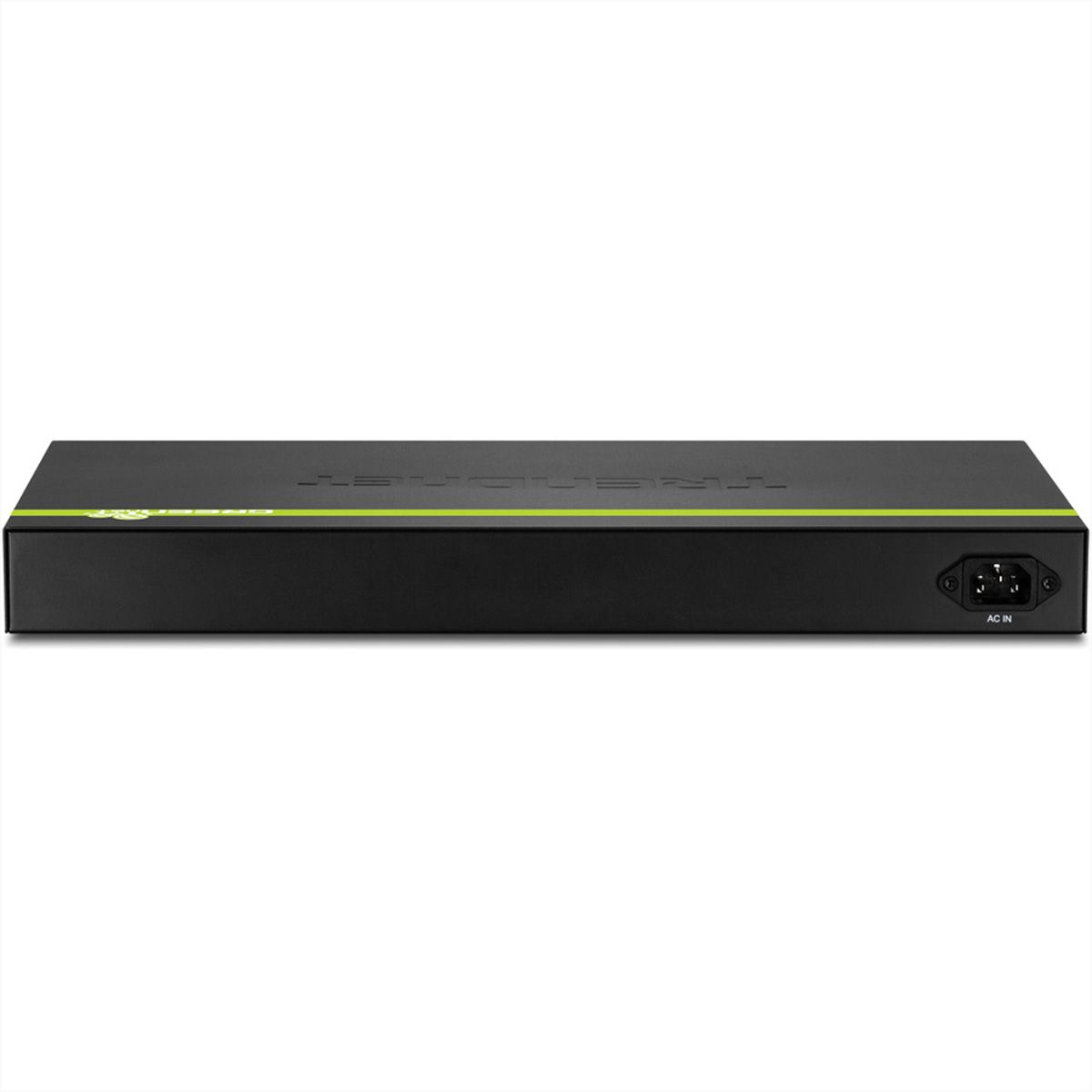

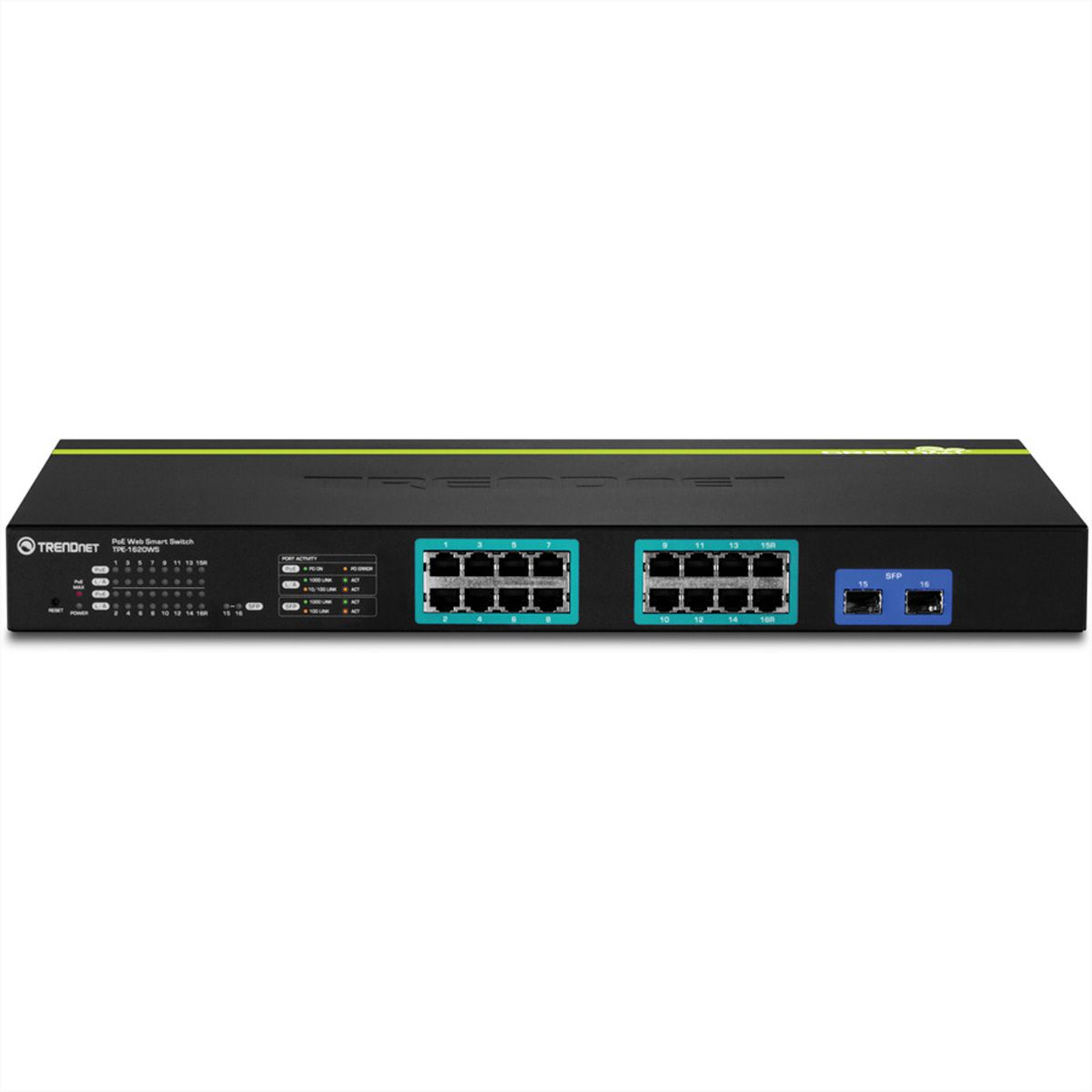

TRENDnet TPE-1620WS 20-Port Gigabit Web Smart PoE+ Switch

Item no. 21221165 Brand / Manufacturer TRENDNET Manuf. item no. TPE-1620WS EAN 710931160093 Item weight 4.655 kg
TRENDNET

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/05/2026
Download PDF

Description

TRENDnet TPE-1620WS 20-Port Gigabit Web Smart PoE+ Switch

TRENDnet’s Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

  • 16 PoE+ Gigabit ports
  • 2 shared Mini-GBIC (SFP) slots
  • Up to 30 W per port with 185 W total power budget
  • Switching capacity of 32 Gbps
  • Supports IPv6 configuration and IPv6 Neighbor Discovery support
  • 802.3ad Link Aggregation, asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and QoS queue scheduling
  • Real-time traffic comparison charts, error group charts, and convenient cable diagnostic testing
  • ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS
  • RMON, SNMP, SNMP Trap, and port mirroring
  • Rack mountable

TRENDnet’s 16-Port Gigabit Web Smart PoE+ Switch, model TPE-1620WS, delivers a 32 Gbps switching capacity with 16 PoE+ Gigabit ports and two shared SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet, and monitoring features at a reduced cost.

Specifications

Manufacturer
TRENDNET
Product group
Network Switches
Product type
Network Switch
Colour
black
Scope of delivery
TPE-1620WS, handleiding, cd-rom (hulpprogramma en gebruikershandleiding), voedingskabel (1,8 m), hardware voor rack montage
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
16
Gigabit Ethernet Ports RJ-45
16
Free slots for SFPs
2
Power over Ethernet (PoE)
yes
Quantity of PoE ports
16
Max. PoE output power (total)
185 W
Mounting angle
Included in content of delivery
Mains connection
Cold appliance connection
Height
44 mm
Width
440 mm
Depth
52 mm
Weight
3.66 kg
Height of packaging (single piece)
100 mm
Width of packaging (single piece)
360 mm
Depth of packaging (single piece)
530 mm
Package weight (single piece)
4.655 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
Gigabit Ethernet (copper) ports quantity
16
Weight & dimensions
Width
440 mm
Depth
251 mm
Height
44.5 mm
Weight
3.6 kg
Power
Power consumption (typical)
198 W
AC input voltage
100-240
AC input frequency
50/60
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Protocols
Management protocols
HTTP/HTTPS (SSL v2/3 TLS), Web-based GUI, SNMP v1/v2c/v3, LLDP, RMON v1
Networking
Networking standards
IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G support
N
Full duplex
Y
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
DHCP client
Y
DHCP server
Y
Spanning tree protocol
Y
Data transmission
MAC address table
16000 entries
Switching capacity
32 Gbit/s
Throughput
23.8 Mpps
Jumbo frames support
Y
Security
Security algorithms
802.1x RADIUS,SSL/TLS
MAC address filtering
Y
Access Control List (ACL)
Y
IGMP snooping
Y
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
MIB support
MIB II
Web-based management
Y
Design
Rack mounting
Y
Colour of product
Black
Form factor
1U
LED indicators
Y
Certification
CE\nFCC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
185 W
Virtual LAN features
VLAN support
Y
Number of VLANs
256
Multicast features
Multicast support
Y

Downloads

Manufacturer data sheet - Deutsch (1.9 MB) Manufacturer data sheet - English (1.9 MB) Manufacturer data sheet - Français (1.9 MB)
