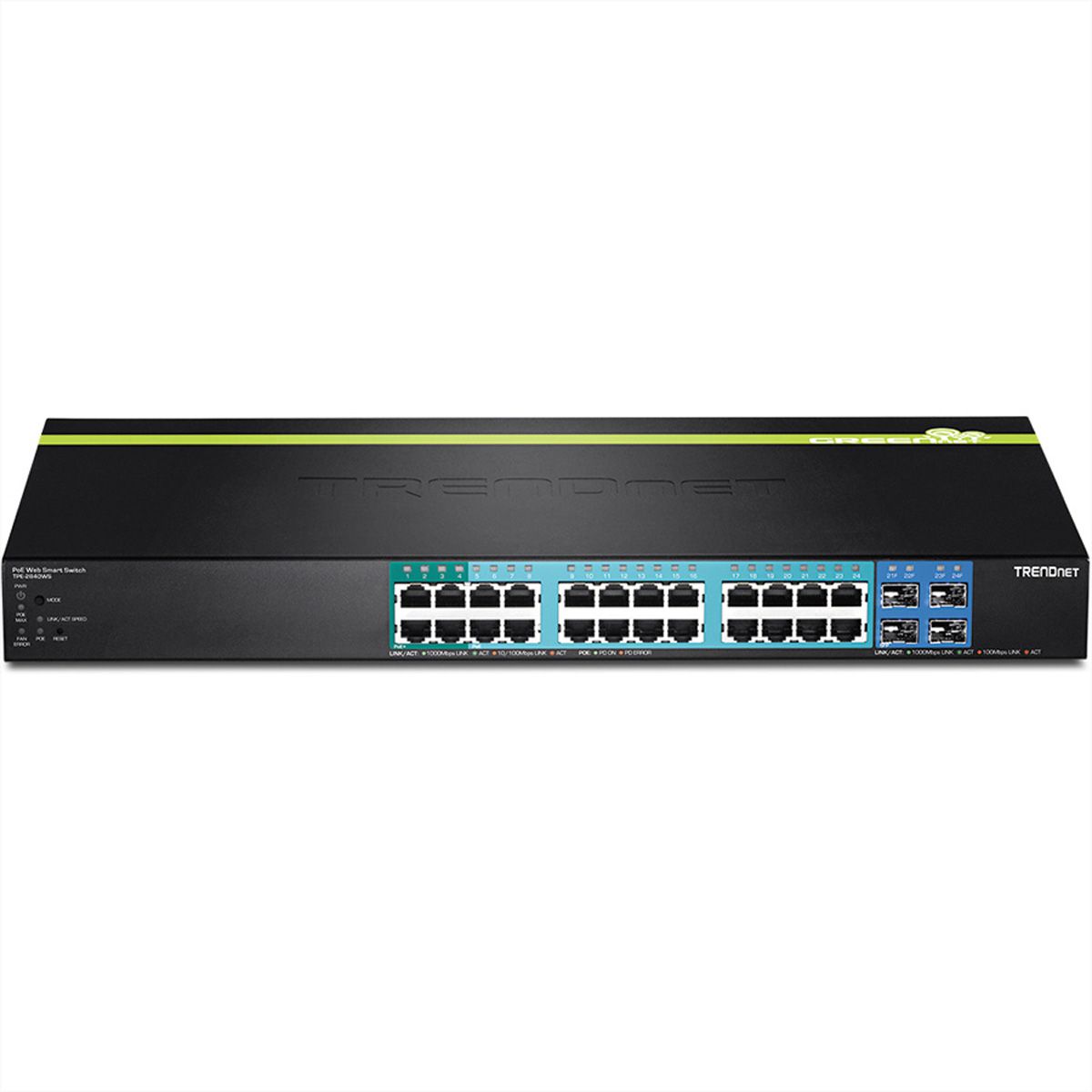

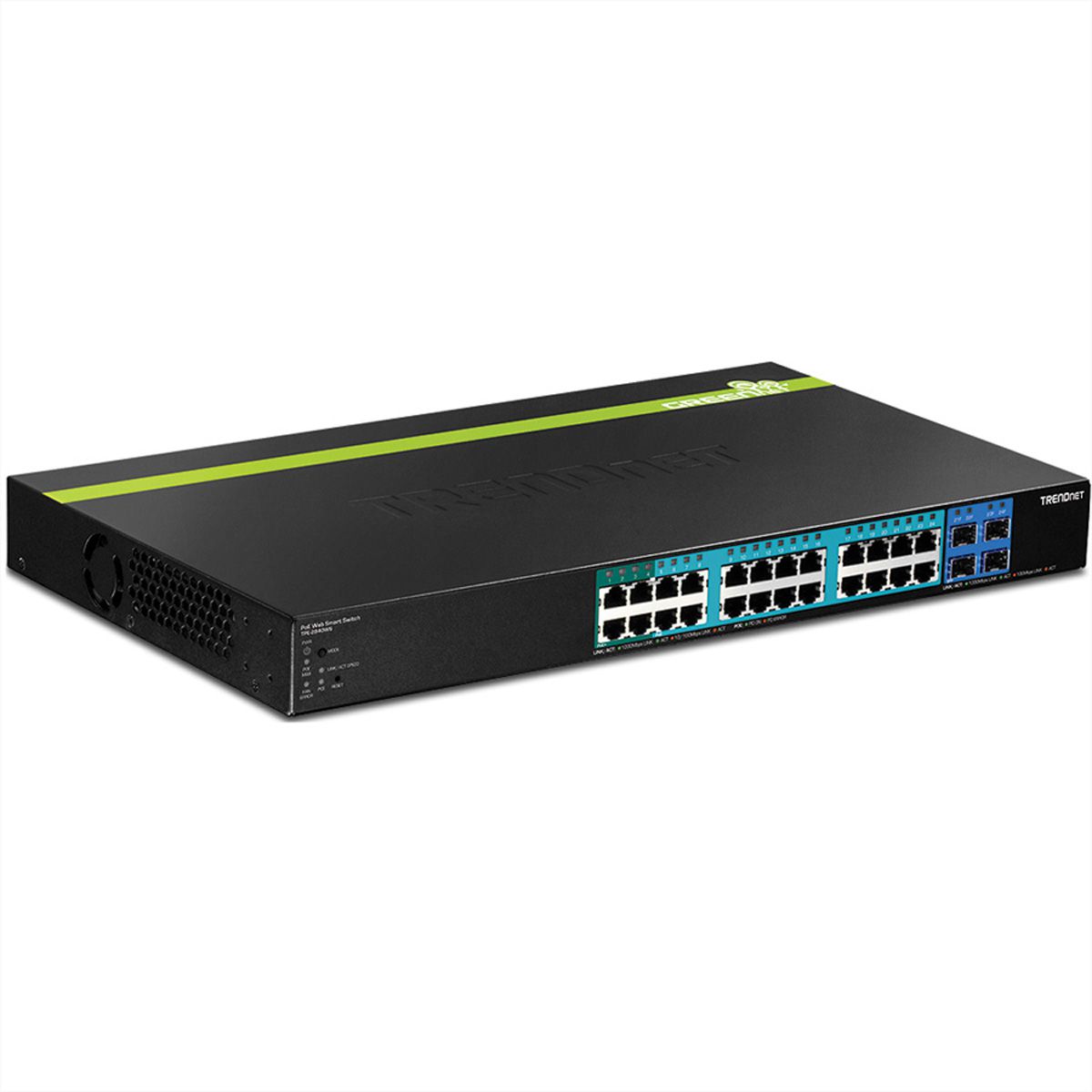

TRENDnet TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch

Item no. 21221166 Brand / Manufacturer TRENDNET Manuf. item no. TPE-2840WS EAN 710931160208 Item weight 4.854 kg
TRENDNET

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/05/2026
Download PDF

Description

TRENDnet TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch

TRENDnet’s Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

  • 4x Gigabit PoE+ ports
  • 20x Gigabit PoE ports
  • 4x SFP slots
  • 185 W total PoE power budget
  • 56 Gbps switching capacity
  • Private/Voice VLAN, QoS, and bandwidth controls
  • Intelligent fan reduces power consumption
  • Supports IPv6 configuration and IPv6 Neighbor Discovery
  • 802.3ad Link Aggregation, asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, bandwidth controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP, and MSTP), QoS queue scheduling
  • Real-time traffic comparison charts, error group charts, and cable diagnostic testing
  • Access control: ACL, SSL, MAC/port filtering, Denial of Service controls, 802.1X, TACACS+, and RADIUS
  • RMON, SNMP, SNMP Trap, and port mirroring support administrator monitoring solutions
  • Rack-mount brackets included

TRENDnet’s 28-Port Gigabit Web Smart PoE+ Switch, model TPE-2840WS, offers 4 x Gigabit PoE+ ports (Ports 1-4 802.3at), 20 x Gigabit PoE ports (Ports 5-24 802.3af), 4 x SFP slots, and a PoE Power budget of 185 Watts. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost.

Specifications

Manufacturer
TRENDNET
Product group
Network Switches
Product type
Network Switch
Colour
black
Scope of delivery
TPE-2840WS, Meertalige installatiehandleiding, CD-ROM (hulpprogramma en gebruikershandleiding), Netsnoer (1,8 m/6 ft), Benodigdheden voor rackmontage
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
28
Gigabit Ethernet Ports RJ-45
24
Free slots for SFPs
4
Power over Ethernet (PoE)
yes
Quantity of PoE ports
24
Max. PoE output power (total)
185 W
Mounting form
19" Rackmount
Mounting angle
Included in content of delivery
Management
Smart
Dimensions (HxWxD)
440 x 250 x 44,45 mm
Power supply
Internal power supply unit
Mains connection
Cold appliance connection
Height
440 mm
Width
250 mm
Depth
44.45 mm
Weight
3.8 kg
Height of packaging (single piece)
90 mm
Width of packaging (single piece)
360 mm
Depth of packaging (single piece)
530 mm
Package weight (single piece)
4.854 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
Gigabit Ethernet (copper) ports quantity
24
Weight & dimensions
Width
440 mm
Depth
250 mm
Height
44.5 mm
Weight
3.8 kg
Power
Power consumption (typical)
240.2 W
AC input voltage
100-240
AC input frequency
50/60
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Protocols
Management protocols
SNMP v1/v2c/v3, RMON v1, HTTP/HTTPS
Networking
Networking standards
IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
N
Full duplex
Y
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Spanning tree protocol
Y
Data transmission
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Throughput
41.7 Mpps
Security
Security algorithms
802.1x RADIUS,SSL/TLS
MAC address filtering
Y
Access Control List (ACL)
Y
SSH/SSL support
Y
IGMP snooping
Y
Management features
Switch type
Managed
Quality of Service (QoS) support
Y
MIB support
MIB, MIB II
Web-based management
Y
Design
Rack mounting
Y
Colour of product
Black
Form factor
1U
LED indicators
Y
Number of fans
3 fan(s)
Certification
CE, FCC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
20
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
185 W
Performance
Noise level
54 dB
Buffer size
1024 KB
Mean time between failures (MTBF)
257362 h
Virtual LAN features
VLAN support
Y
Number of VLANs
256
Multicast features
Multicast support
Y

Downloads

Manufacturer data sheet - Deutsch (949.8 KB) PDF data sheet - Trendnet TPE-2840WS Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black network switch - English (941.2 KB)
