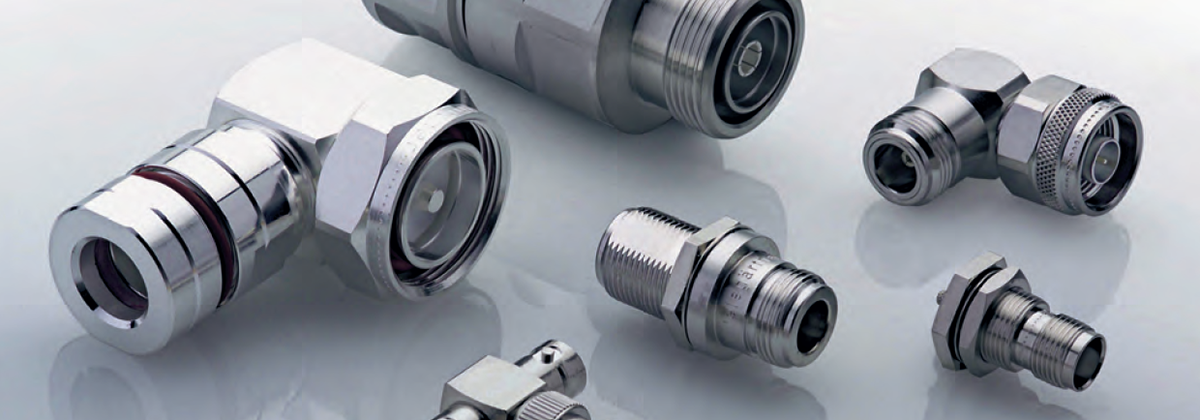

High-frequency connectors from TELEGÄRTNER at a glance
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/teleg/teleg-hochfrequenz-steckverbinder-1.png)
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/telegrtn.png)
COAXIAL CONNECTION SOLUTIONS FOR THE HIGHEST DEMANDS
What makes a good RF connector?
HF connectors are used for the low-loss transmission of high-frequency signals - usually in the frequency range from a few MHz to the GHz range. They not only have to fulfil electrical requirements, but also mechanical ones. Precise impedance matching (usually 50 Ohm), stable contacting and reliable shielding against electromagnetic influences are essential.
TELEGÄRTNER develops and manufactures RF connectors that fulfil precisely these criteria - and also impress with their easy handling, compatibility with standard cables and wide range of connection variants.
Variety for all applications - the product range in detail
The following selection shows examples of the types of connectors TELEGÄRTNER offers - including their typical areas of application:
- N connectors are coaxial connectors with screw locking, robust and suitable for use in demanding RF environments. They are often found in mobile phone systems, radio systems and RF laboratory setups.
- BNC connectors are coaxial connectors with a bayonet lock and are particularly popular for measuring devices, test benches and video transmissions due to their quick locking mechanism.
- SMA connectors are equipped with screw locking and are characterised by high frequency stability and compact design - ideal for applications in microwave technology, radio modules and antenna connections.
- TNC right-angle connectors are connected to each other by a thread and offer a vibration-proof hold with good RF performance - for example in mobile or industrial applications.
- For professional installation in devices or control cabinets, TELEGÄRTNER also offers various installation sockets and crimp plugs for BNC systems.
Technology meets quality - why TELEGÄRTNER?
For decades, TELEGÄRTNER has stood for high-quality connection technology ‘Made in Germany’. The products are characterised by
- high manufacturing precision,
- tight tolerances in impedance matching,
- long-term availability and
- extensive compatibility with common cable types.
These features are particularly important in the field of high-frequency technology, where signal interference, contact resistance or unwanted reflections can significantly impair system quality.
Conclusion: The right connection for every frequency
The coaxial RF connectors from TELEGÄRTNER provide companies and specialised users with a comprehensive portfolio
Item no.: | 21170426 |
---|---|
Manuf. item no. | 100023370 |
Item no.: | 21170447 |
---|---|
Manuf. item no. | 100023431 |
Item no.: | 21170497 |
---|---|
Manuf. item no. | 100023696 |
Item no.: | 21170470 |
---|---|
Manuf. item no. | 100023339 |
Item no.: | 21170471 |
---|---|
Manuf. item no. | 100023319 |
Item no.: | 21170485 |
---|---|
Manuf. item no. | 100023405 |
